Features of MCC

• Digital power monitoring device allows the power system to be checked for abnormalities
• Automatic separation of main and load circuits when entering and exiting units
• Designed for easy capacity change and maintenance
• Earthquake-resistant design

MCC Specifications

• Rated Voltage 690V
• Rated Current ~800A, or other customer spec.
• Rated Frequency 60/50 Hz
• Rated Short Time Current (1sec) Max. 25 kA
• Rated Operating Voltage AC 220V, 110V, or other customer spec.
• Protection Degree IP4X, Other Specifications
• Dimension (mm) (W) 600~1000, (D) 550~800, (H) 2000~2350, or other customer spec.
• Certificate KERI Type Test Report (by KERI, Korea), K-Mark, Excellent Performance Certification (by Korean MSS), Excellent Product (by Korean PPS)

Drawings

•

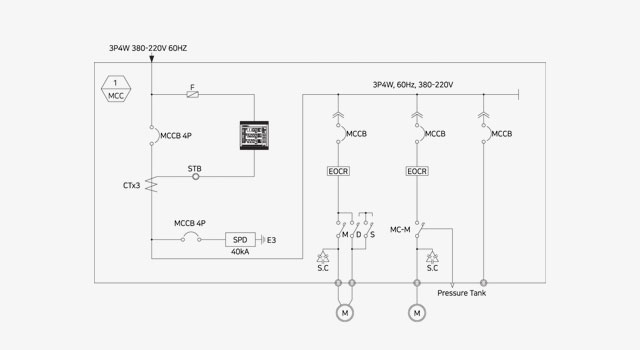

  One-line diagram
•
  Front view
•
  Side view
•
  UNITS detailed view
